询价船用配件采购—MARFLEX配件（CK-H20230918-03）询价

MARFLEX PUMP



   PUMP TYPE:MDPC-200

   SERIAL No.:

   CAPACITY:600 M3/HR

   HEAD:125 MLC

   SPECIFIC GRAVITY:0.75 KG/LTR

   VISCOSITY: 1cSt

   TEMPERATURE : 20 C

   DESIGN SPEED: 2336 rpm

   MAXIMUM SPEED: 2400 rpm

   CONSUMED POWER : 209 KW

   TORQUE : 854 NM

   IMPELLER TYPE: CPK 150-400

   PUMP HEAD TYPE: MDP-K1_6

   IMPELLER DIAMETER : 405 MM

   DISCHARGE CONNECTION : JIS200-16K

   MATERIAL IMPELLER : AISI 316L-1,4404

   MATERIAL PUMP : AISI 316L-1,4404

   PUMP LENGTH : 18067 MM

   MOTOR:60 HZ, 4POLE, 230KW, 362A, 440V, 1787 RPM   YARD : STX SHIPBUILDING CO.LTD.

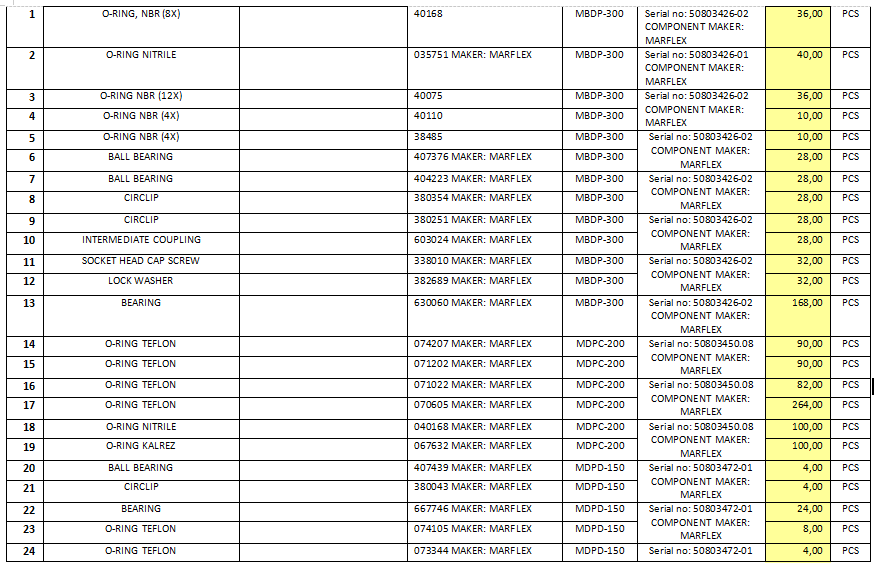

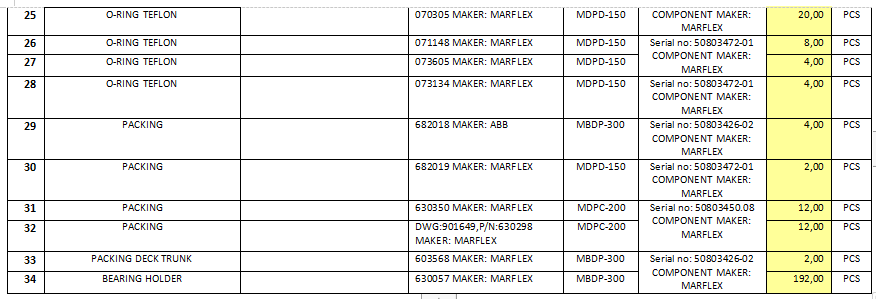

ITEM 1 – LOWER SEAL SUPPORT – 630516

ITEM 2 – SEAL SUPPORT RING – 603563





MARFLEX ; SLOP PUMPS



   PUMP TYPE:MDPD-150

   SERIAL No.:

   CAPACITY:300 M3/HR

   HEAD:125 MLC

   SPECIFIC GRAVITY:0.75 KG/LTR

   VISCOSITY: 1cSt

   TEMPERATURE : 20 C

   DESIGN SPEED: 2940 rpm

   MAXIMUM SPEED: 3600 rpm

   IMPELLER TYPE: CPK 100-250

   PUMP HEAD TYPE: MDP-H0_4

   IMPELLER DIAMETER : 260 MM

   CONSUMED POWER : 102 KW

   TORQUE : 331 NM

   DISCHARGE CONNECTION : JIS150-16K

   MATERIAL IMPELLER : AISI 316L-1,4404

   MATERIAL PUMP : AISI 316L-1,4404

   PUMP LENGTH : 18017 MM

   MOTOR:60HZ, 125KW, 190A, 440V, 3572 RPM



ITEM 3 – WEAR RING HOLDER – 682030



  MARFLEX BALLAST PUMP

   PUMP TYPE:MBDP-300

   SERIAL No.:

   CAPACITY:750 M3/HR

   HEAD:25 MLC

   SPECIFIC GRAVITY:1.025 KG/LTR

   VISCOSITY: 1cSt

   TEMPERATURE : 20 C

   DESIGN SPEED: 1805 rpm

   MAXIMUM SPEED: 2000 rpm

   CONSUMED POWER : 82 KW

   TORQUE : 434 NM

   IMPELLER TYPE: Eta-R 250-300

   PUMP HEAD TYPE: MBDP-300-_7

   IMPELLER DIAMETER : 250 MM

   DISCHARGE CONNECTION : JIS300-5K

   MATERIAL IMPELLER : GCuSn10

   MATERIAL PUMP : AISI 316L-1,4404

   PUMP LENGTH : 17760 MM

   MOTOR:60HZ, 4POLE, 105 KW, 165A, 440V, 1780RPM
